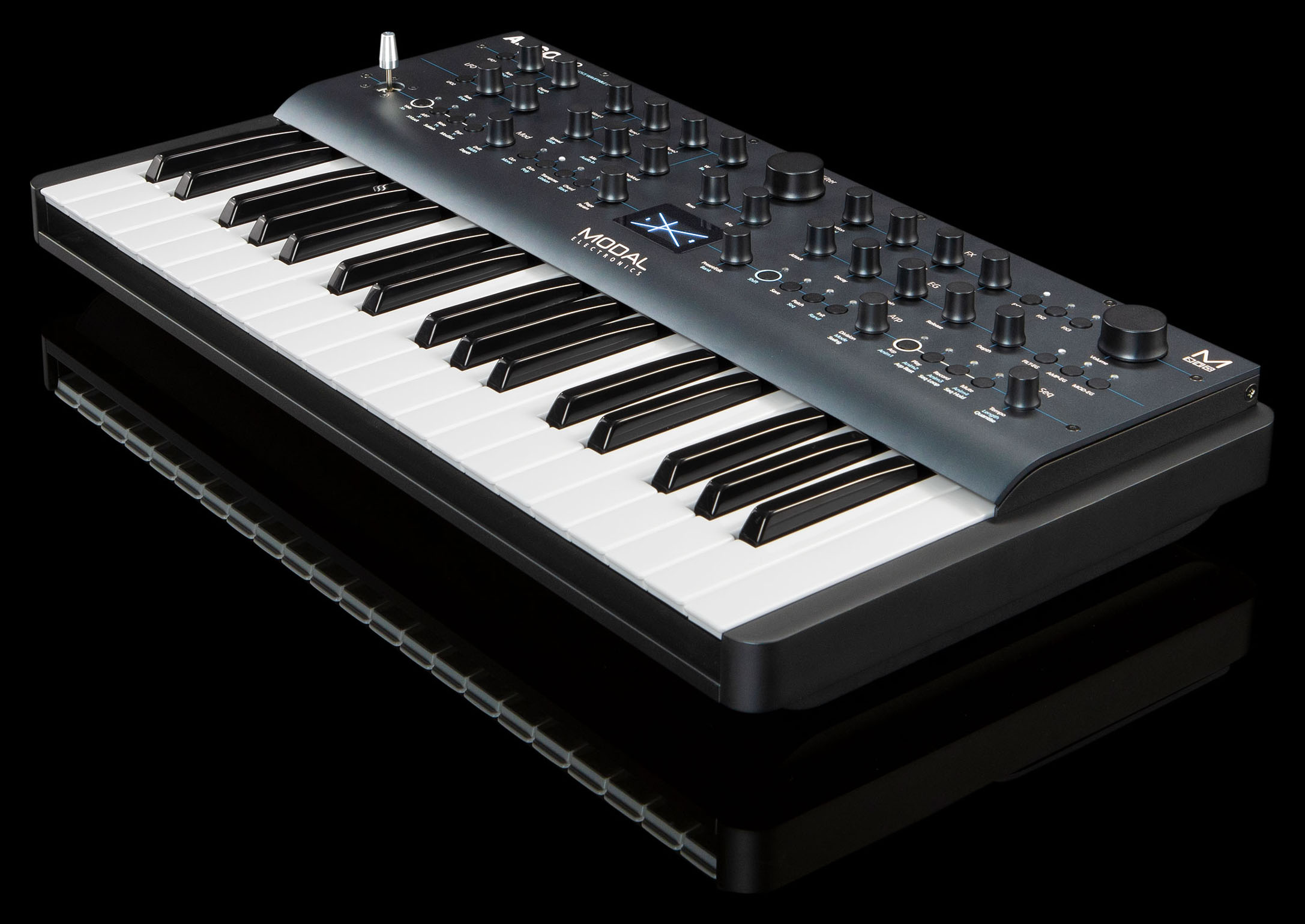

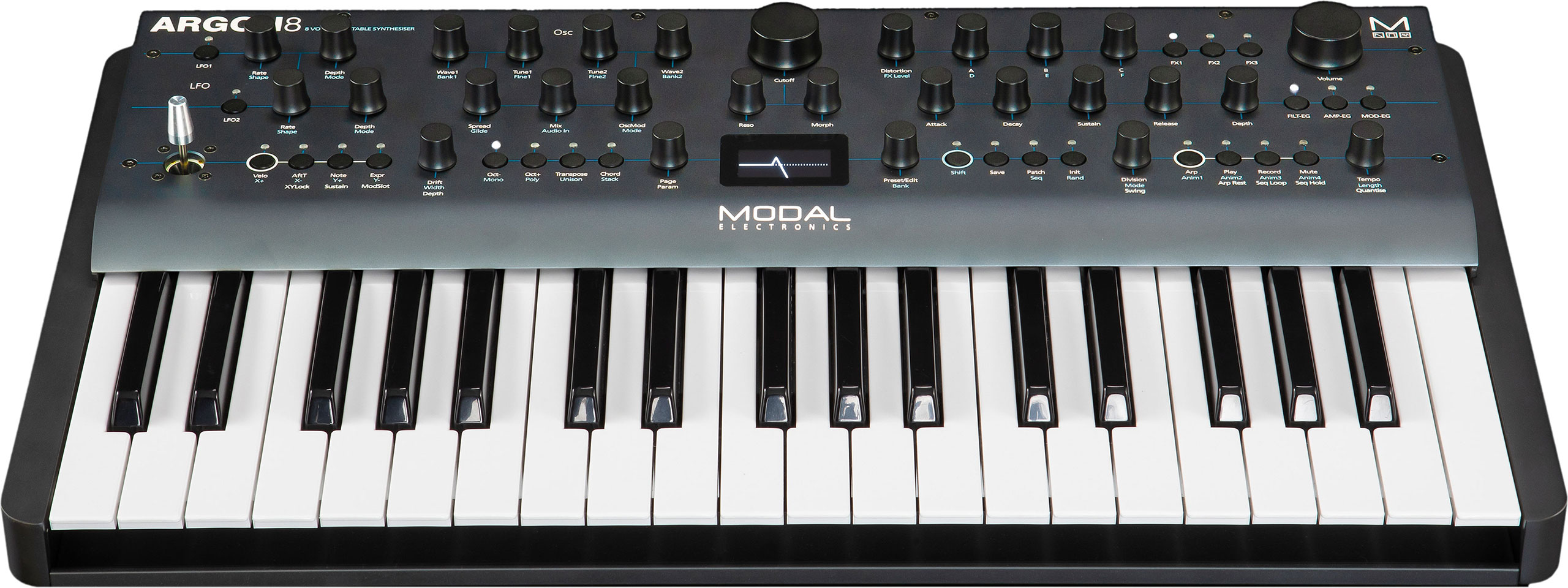

Modal ARGON8

Polyphony

• True 8 voice polyphonic

MPE

• Supports MPE-compatible MIDI controllers, allowing you to apply polyphonic control and expression to individual notes

Oscillators

• 32 high-resolution wavetable oscillators, 4 per voice
• 120 carefully crafted wavetables split into 24 banks of 5 morphable waveform sets Additional PWM bank and 3 noise/modulation banks accessible on Oscillator 2
• 32 static wavetable modifiers including, de-rez, wave folders, waveshapers, phase shapers and rectify can be applied to the 120 wavetables to give a mind-boggling array of permutations and new waveshapes.
• 8 types of oscillator modifier including Phase Mod (FM), Ring Mod, Amp Mod, Hard Sync and Windowed Sync
• Voice Drift and Width controls that help to create massive stereo soundscapes

Filter

• 2-pole state variable filters, 4 Filter types – ‘Standard’ filters are based on the resonant filter found in other Modal synthesisers and ‘Classic’ with a more rounded character and a softer resonance response.

Modulation

• 3 dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously including negative (reverse) versions and multiple envelope curve options
• 2 Audio rate LFO’s with tempo sync (one poly, one global). Polyphonic LFO can sync to frequency divisions
• 8 assignable modulation slots and 4 additional fixed modulation routings for common assignments with 11 modulation sources and 52 modulation destinations

Sequencer and Arpeggiator

• Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations (Delay FX, LFO’s, sequencer and arpeggiator can be either clocked internally or externally)
• Polyphonic Step Sequencer with 64 steps, 8 notes per step, 4 lanes of Parameter-Lock style animation, Step Input mode, multiple playback modes including gate modes and rest function
• Built-In sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating
• FX
• Waveshaping distortion
• 3 incredibly powerful independent and user-configurable stereo FX engines for Chorus, Phaser, Flanger (Pos), Flanger (Neg), Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb that can be arranged in any order
• User Memory
• 500 patch memories, all fully editable and ships with 300 factory programs
• 100 sequencer presets that can be linked to any patch for quickly loading arrangements
• 100 FX presets
• 8 Quick Recall slots accessible from the panel for quickly loading your favourite patches
• Controls and Performance
• Premium FATAR 37-key Keyboard with velocity and channel aftertouch
• 29 endless encoders, 24 buttons
• 4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired
• Multiple keyboard modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4
• Glide/Portamento with both legato and staccato modes
• Chord Invert control to easily create chord inversions and variations

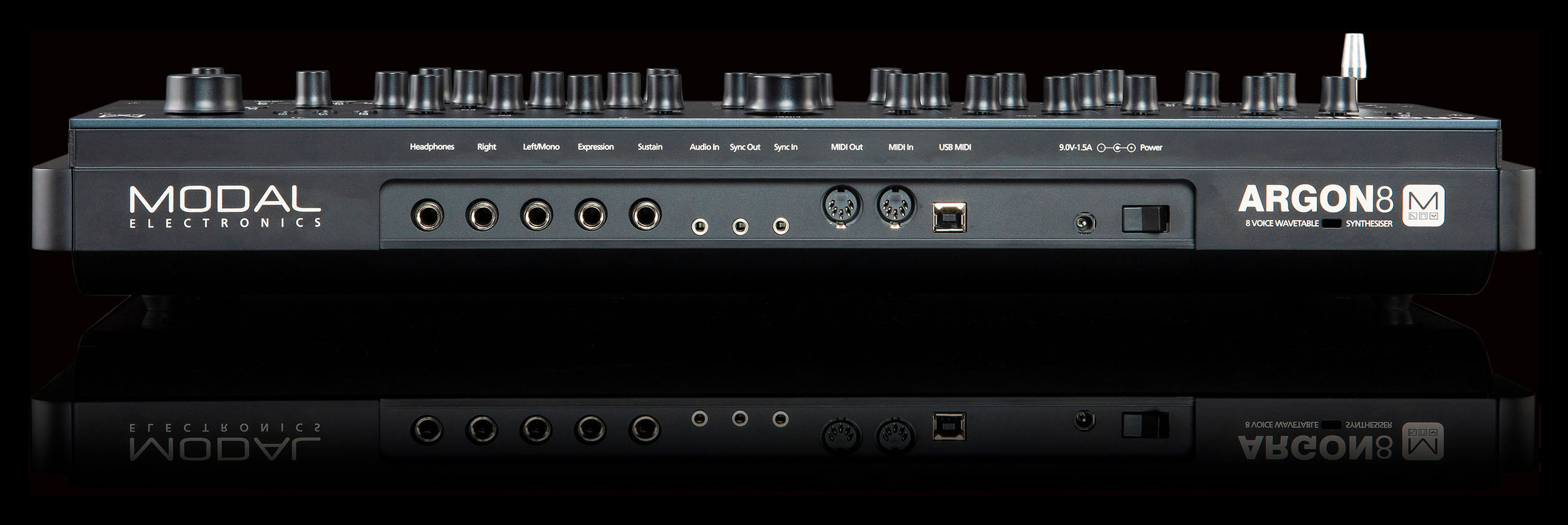

Inputs and Outputs

• 6.35 mm / 1/4″ TS dual-mono line outputs
• 6.35 mm / 1/4″ TRS headphone output
• 3.5 mm / 1/8″ TRS stereo audio input

MIDI DIN In and Out

• 3.5 mm / 1/8″ TS Analogue clock sync In and Out
• Class compliant MIDI over USB connection
• 6.35 mm / 1/4″ TRS expression pedal input
• 6.35 mm / 1/4″ TS sustain pedal input

Enclosure and Display

• Road-ready steel and aluminium enclosure with economical stained bamboo end cheeks
• 1.54-inch large OLED display for instant visual feedback at all times of playing/editing
• Power
• Power: DC-9.0V – 1.5A centre-positive
• Editor Software
• Free MODALapp software editor available for macOS, Windows, iOS and Android
• MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available
• DOWNLOAD
• General
• Dimensions (L x W x H): 555 x 300 x 100 mm / 21.9″ x 11.8″ x 4″
• Weight: 5.60 kg / 12.4 lbs
