Lewitt Dtp 640 Rex Dual-Element

Exceptional sound for bass drums and other bass-heavy instruments

The DTP 640 REX is a dual-capsule microphone specifically designed to capture the sound of your drums and percussion instruments. It features two phase-aligned capsules, a condenser and a dynamic one. Both capsules can be adjusted to emphasize your sound for studio and live applications.

Dual-capsule bass drum microphone

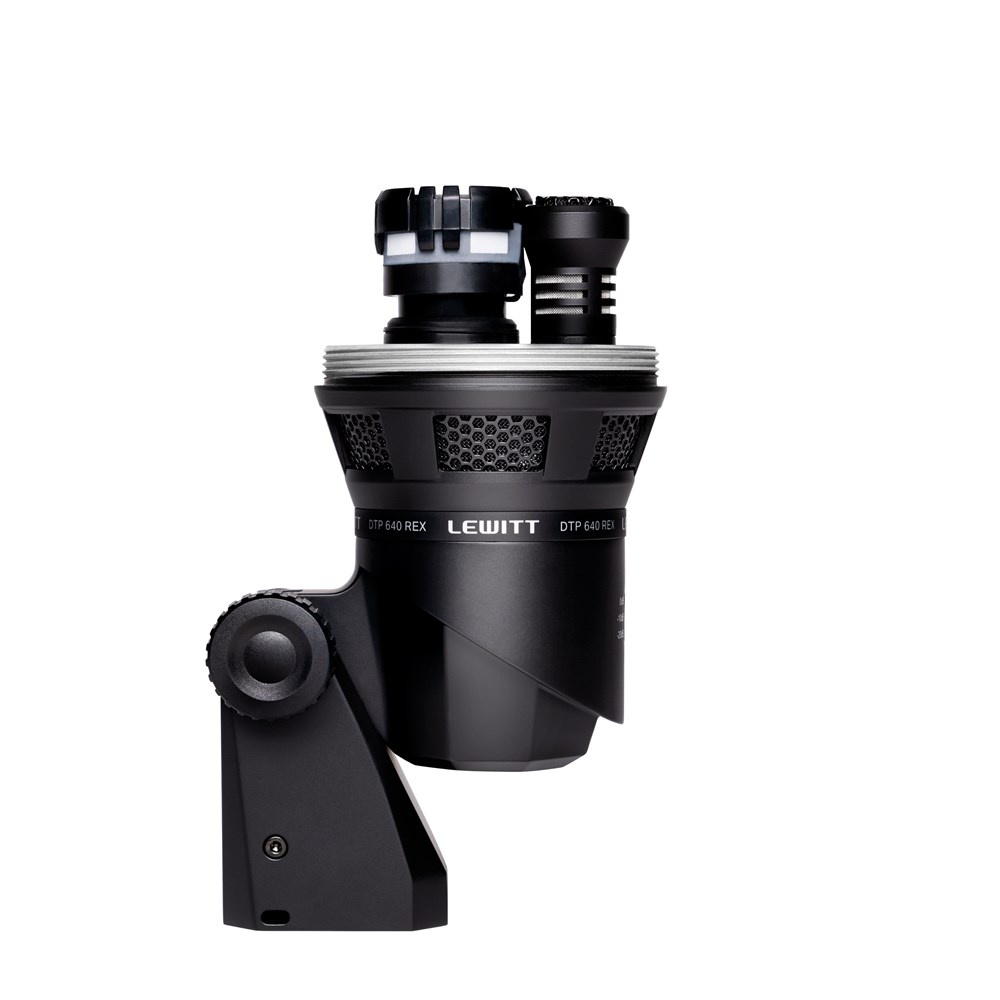

The DTP 640 REX features two phase-aligned microphones in one. The dynamic side ensures accurate attack reproduction of the bass drum, while the condenser element captures more of the body resonance and decay. Each element has a dedicated output. This enables you to shape the bass drum sound in unique ways.

Three switchable sound characteristics

=//= Both elements with neutral frequency response.

+//= Dynamic element boosts frequencies between 3 and 5 kHz; condenser stays neutral.

+//+ Dynamic boosts the range of 3-5 kHz, condenser boosts frequencies 70-150 Hz to deliver full-bodied sound.

Great on all kinds of bass-heavy instruments

With the DTP 640 REX you get massive yet clear bass drum and bass recordings, in the studio and on stage. Both capsules, dynamic and condenser, are specifically designed to replicate low frequencies with precision and punch.

Specifications

•             Frequency range (dynamic): 20 ... 16,000 Hz
•             Frequency range (condenser): 20 ... 20,000 Hz
•             Sensitivity (dynamic): 0.4 mV/Pa, -69 dBV/Pa
•             Sensitivity (condenser): 2 mV/Pa, -54 dBV/Pa
•             Max. SPL for 0.5% THD: 150 dBSPL
•             Dynamic range: 122 dB (A)
•             Polar pattern: Cardioid
•             Included: Transport bag, 5-pin audio cable
•             Microphone dimensions: 71 dia. x 158 mm, 2.8 dia. x 6.2 in
•             Microphone net weight: 755 g, 27.3 oz

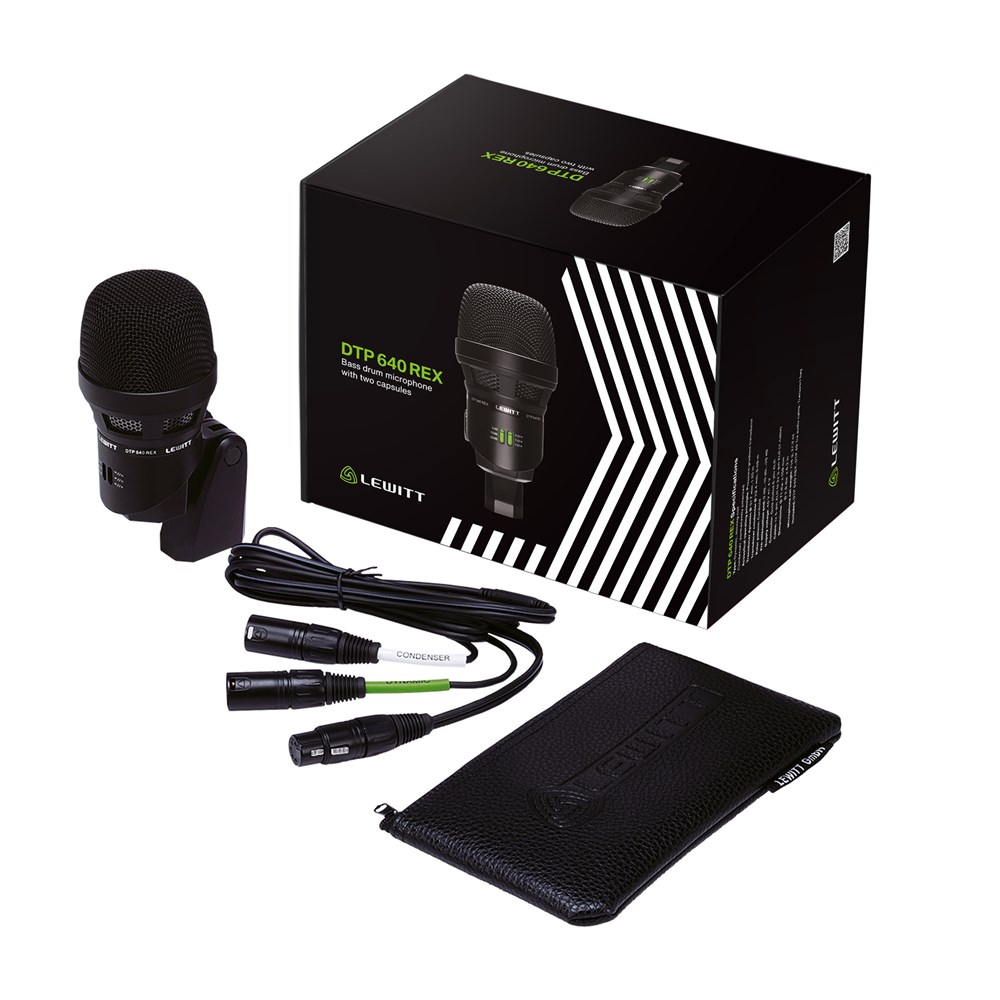

Box contents

•             DTP 640 REX – Dynamic instrument microphone
•             DTP 40 Trs – 5-pin audio cable
•             DTP 40 Lb - Cushioned mic bag
