Jbl LSR705P

Pris/st.

5"
Bi-Amplified Master Reference Monitor.

The JBL
705P is the self-powered reference monitor for critical music recording, film
post and broadcast production applications. The JBL 705P leverages the same
patent-pending driver technologies and JBL’s renowned Image Control Waveguide
found in the 708P and the flagship M2, but with a smaller footprint. Despite
its compact size, JBL 705P delivers an eye-opening level of output, well beyond
that of existing, comparably-sized studio monitors, for greater dynamic range
and greater working distances. The speakers deliver an expansive soundstage and
pristine accuracy in a broad range of rooms.

• Next-generation
  JBL driver technology
• Patent-pending JBL Image
  Control Waveguide
• Integrated dual amplification
  system with internal floating-point DSP
• Comprehensive room EQ and delay
  controls
• Compact enclosures for easy
  placement and installation
• JBL 725G low-frequency
  transducer delivers low-distortion and high SPL
• JBL 2409H high-frequency
  transducer with low-mass annular diaphragm
• JBL-designed patent-pending
  Image Control Waveguide
• 2-channel Class-D amplifier HF
  250W / LF 250W
• 192
  kHz, 32-bit floating point processing
• 12 bands of Room EQ, 8 bands of
  User EQ
• 6
  factory presets, 6 user-defined presets
• 18 milliseconds of Room Delay,
  150 milliseconds of AV Sync Delay
• 1 x XLR-1/4" balanced
  combination analog audio input
• 1 x XLR AES3 format digital
  input with 1 x XLR pass-through output
• Digital input accepts sample
  rates of up to 192 kHz
• User-enabled
  sample rate converters
• RJ-45 network connection for
  Harman HiQnet connectivity

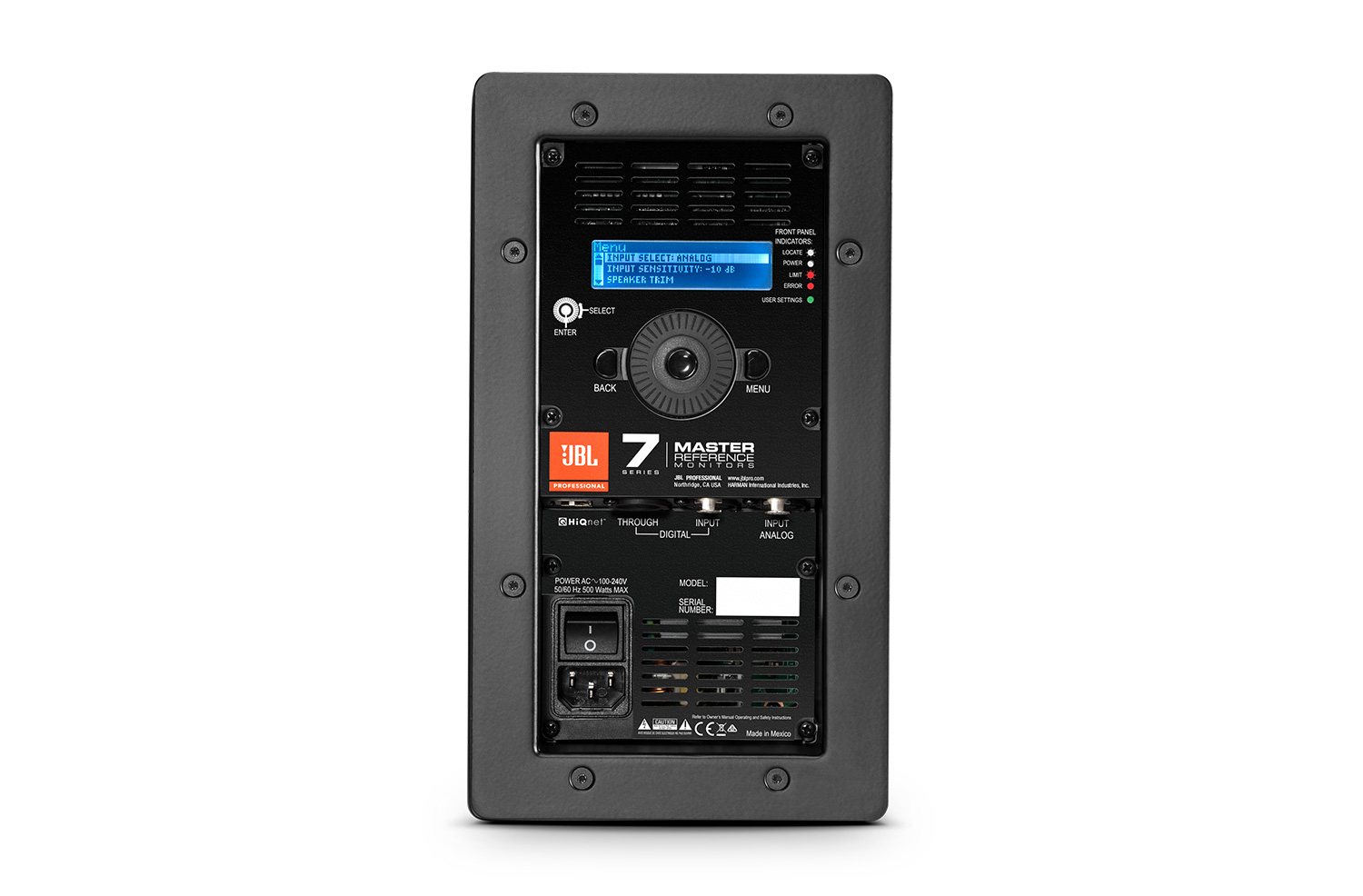

• Rear-panel multi-function
  controls and LCD display allow selection of input sensitivity, input trim,
  Room EQ, User EQ, Room Delay, AV Sync Delay
• Top and bottom mounting points;
  birch plywood cabinets reinforced for safe mounting
• Protective
  steel grilles
