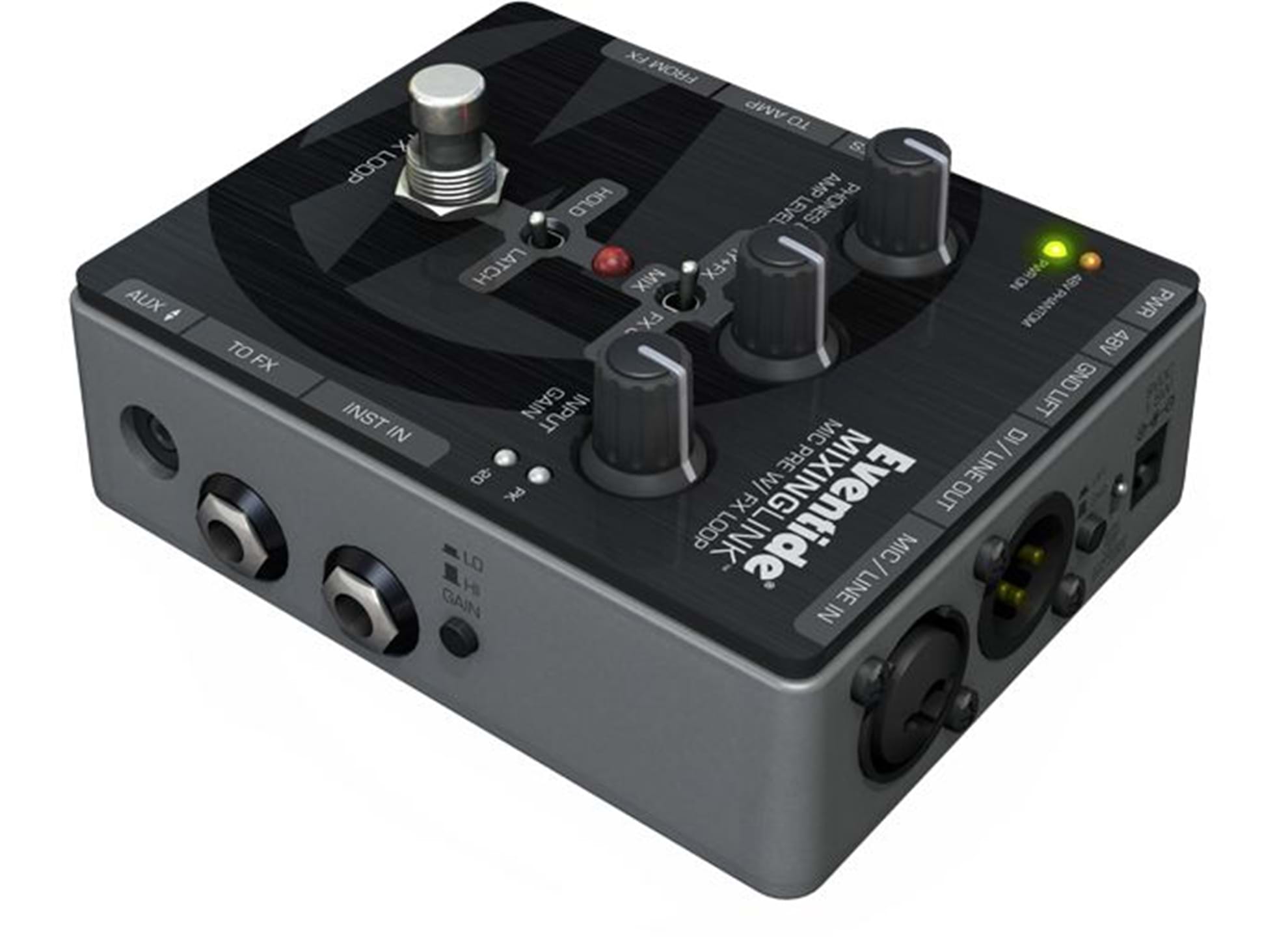

Eventide Mixinglink

The MixingLink is a new studio-quality microphone preamp in a compact stompbox form factor with an effects loop. The MixingLink fits neatly on a pedalboard or in a backpack, allowing vocalists immediate control over effects.

- High Quality microphone preamplifier with greater than 120db signal to noise ratio with FX loop in a compact package
- Effects loop send and return accommodates balanced and unbalanced signals and interfaces with consoles or guitar pedals easily
- Latching or momentary footswitch control of effects loop for performance effects
- Works with a wide range of microphones including condenser and ribbon microphones with up to 70dB of clean gain
- Aux I/O connection supporting stereo input and mobile device send level
- Guitar amp output and headphone monitor output with separate master volume control
- International universal 9VDC power supply included, or 9V battery, or can be powered by the PowerFactor 2
- 48V phantom power for condenser microphones
- Balanced XLR output which supports DI and Line levels (-10dB to +18dBu)
- Instrument and balanced line level inputs (-10dB to +18dBu)
- Versatile mix control supports 3 modes of operation - 100% microphone with effects blended in, or microphone/effects balance control, or 100% FX (with no microphone)
