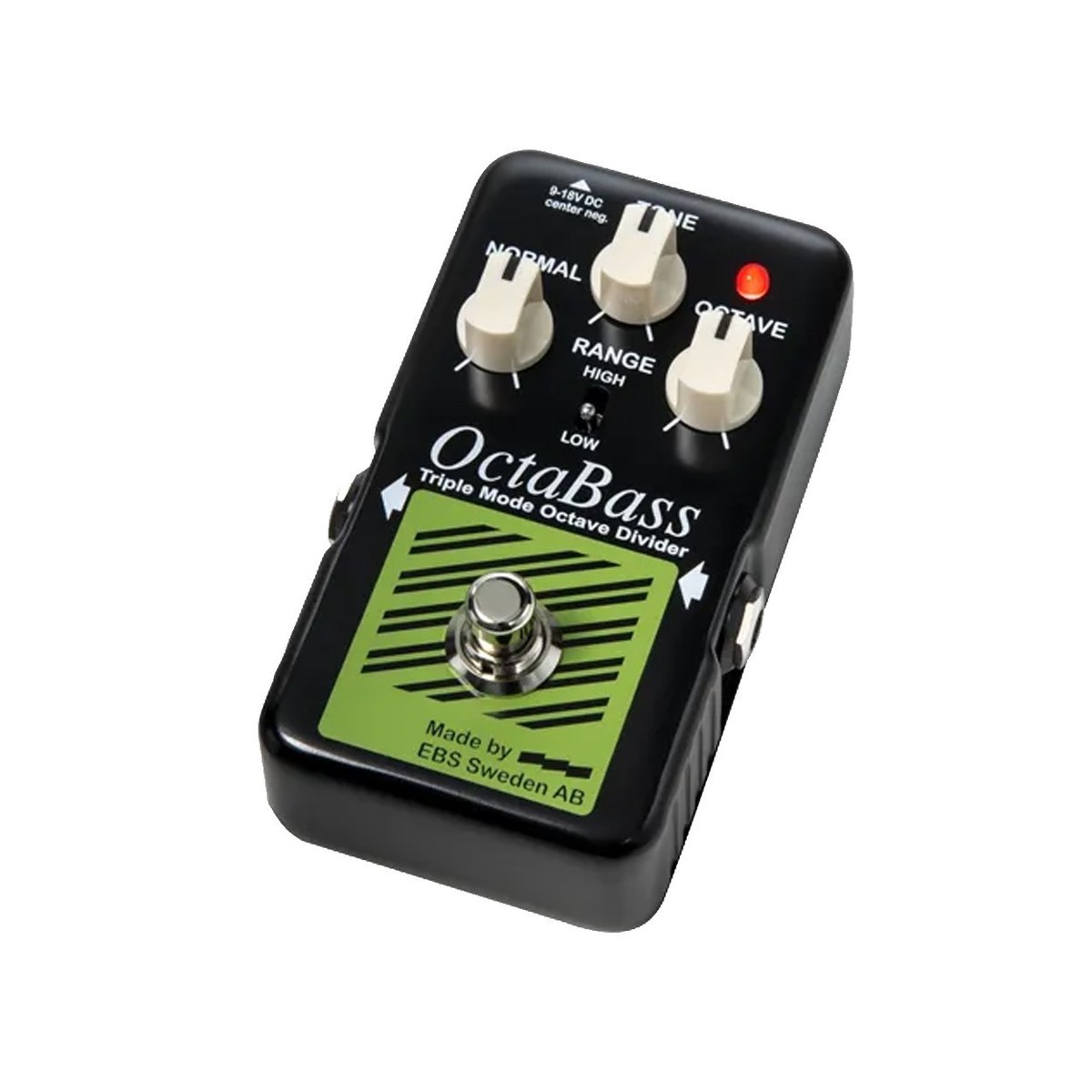

Ebs EBS-OC-BL, OctaBass pedal Blue Label

THE
EBS OCTABASS BLUE LABEL PUSHES THE BOUNDARIES FOR WHAT HAS SEEN AS POSSIBLE WITH AN ANALOG
OCTAVE EFFECT. THE QUALITY AND CHARACTER OF THE OCTAVE TONE, AS WELL AS THE
PRECISION AND SPEED OF THE TRACKING, IS OUTSTANDING.

The EBS
OctaBass was the first effect unit ever made by EBS. It is famous for fast and
accurate tracking and a fat, natural sound. When you play your instrument, it
"tracks" the note you play and produce a sound one octave below to
mix in with the note you play.  The 'Blue Label' model has a couple of new
features that enhance the tracking range and improves the control of the sound.

 Improve
the tracking where it matters the most

A new
Range-switch makes it possible to move the optimized focus area of the tracking
to either higher up or lower down the
fretboard. All to match your playing style and needs. This feature makes the
tracking speed and range outstanding for an analog octave pedal. Note:
Don't confuse this switch with the Range-switch on previous OctaBass pedals
where it changed the character of the tone.

 Enhanced
tone control

By adding a
seamless tone control you can go from a present, focused
octave sound that cuts through the mix all the way to a sub-bass backdrop of
lows that discreetly supports the note you play. The tone control enhances the
palette of sounds and also makes it easier to achieve a synthesized bass sound.

Power the
Blue Label OctaBass with 9-18V DC power. The footprint is reduced by 12%
compared to the previous Studio and Black Label editions.

EBS OctaBass Blue Label

• Nominal
  Input Level: -10 dBv
• Input
  Impedance: 1.8 Mohms
• Output
  Impedance: 100 ohms
• Dry
  Bandwidth +0/-2 dB: 20 - 20k Hz
• Dry Level min/max: -oo / 0 dB
• Octaver
  Level Gain min/max: -oo / 12 dB min
• Octaver Tone Filter:
  Type Low Pass
  Slope >18 dB/octave
  Range 60 - 350 Hz
• Triggering
  Threshold: -70 dBv @200 Hz
• Dimensions: W
  x H x D 2.6” x 4.5” x 1.9”
  (67 x 115 x 48 mm)
• Weight: 315g
  (0.7 lb.)
• Type: Analog Effect, Relay type
  Switching
• Power Requirements: 9, 12 or 18 V DC, 40 mA
  max. Pedal shuts off below 6.0 V
