Darkglass-Electronics Darkglass Microtubes B7K Ultra V2 AUX

Darkglass
Microtubes B7K v2.
Darkglass Electronics är ett företag baserat I Finland som bygger galet bra
pedaler för bassister. Darkglass Microtubes B7K v2. En rejäl uppdatering av
mångas favoritpedal. Handgjord
i Finland.

Facts: Master: Whereas
the Level Knob controls the output of the overdrive section the Master volume
adjusts the overall volume of the unit. Ideal for fine tuning the output on
clean mode. It also serves as a DI level control. Blend: Mixes the clean input signal with the overdriven signal. The
clean signal remains at unity gain while the volume of the overdriven signal is
set by the Level knob, allowing for fine control of the blend ratio. Level: Sets the volume of the
overdriven signal. Drive: Sets the
amount of saturation in the overdriven signal. Attack Switch: Sets the amount of treble content to saturate: The
"Boost" setting emphasizes the treble content extra clarity and
presence. The "Flat" position leaves this register untouched while
the "Cut" position will reduce the amount of high frequencies being
saturated. Grunt Switch: Sets the
amount of low frequency content to saturate by selecting between three
different bass boost levels before the clipping stage. Bass: +-12dB @ 100Hz. Lo
Mids: +-12dB switchable 250Hz, 500Hz and 1kHz. Hi Mids: +-12dB switchable

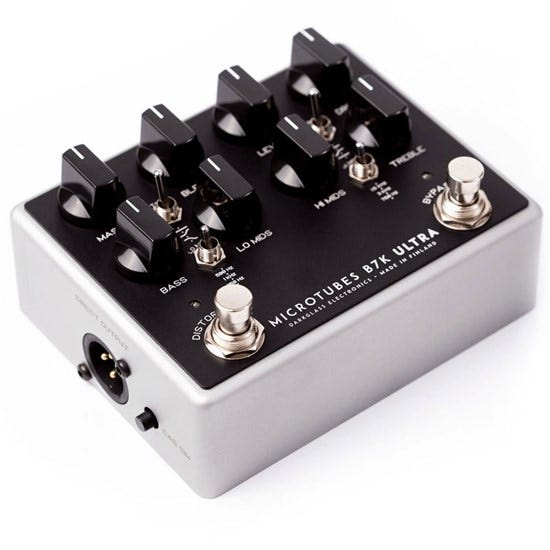

750Hz, 1.5KHz and 3kHz. Treble: +-12dB @ 5kHz. Direct Ouput: Balanced XLR output for connecting the pedal to a microphone
preamp, PA system etc. Ground lift: Disconnects
the signal ground on the Direct Output to break any ground loops. Set this
switch to either position that has less noise. The switch does not affect the
¼” output. Cab Sim: Toggle the
cabinet simulation on/off on the Direct Output. This switch completely bypasses
all digital circuits and allows you to get a zero latency signal when needed. Headphones: B7K Ultra has an internal
stereo headphone amplifier capable of driving a minimum load of 16 ohms from
the 3.5mm stereo jack. Use the Master volume control to adjust the level. USB: A Micro USB B connector allows you
to connect the pedal to PC/Mac to load cabinet simulation impulse responses to

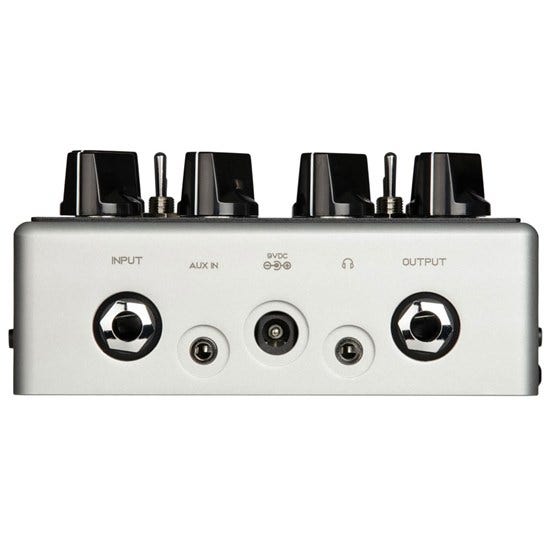

the pedal and control various other settings. Aux In: This 3.5mm stereo input allows you to practice with backing
tracks from e.g. your smartphone or laptop. Auxiliary input can only be used
with the headphone output. The pedal does not control the level, it must be set
from your audio source. Remember to always first set the level low before
connecting anything to the aux in! Dimensions:
125x96x57 mm (4,92x3,77x2,24 in)
